KNN Fisher Holistic {LB]

KNN FISHER HOLISTIC: Multi-Timeframe Predictive Suite
A Professional Quantitative Tool for Structural Trend Analysis.

The KNN FISHER HOLISTIC is a high-complexity technical indicator designed to eliminate the noise of single-timeframe trading. By combining the mathematical precision of the Fisher Transform with the statistical power of a k-Nearest Neighbors (KNN) algorithm, this tool identifies high-probability zones where market structure and historical patterns align.

■ THE ARCHITECTURE
1. The Holistic Master Axis
At the core of the indicator is a Weighted Multi-Timeframe (MTF) Axis. It standardizes the 15m, 1H, and 4H Fisher Transforms into a unified Z-Score distribution.

Pondération: 4H (50%), 1H (30%), 15m (20%).

Smoothing: We use an ALMA (Arnaud Legoux Moving Average) filter to provide a fluid, "zero-lag" trend line that represents the true institutional flow.

2. KNN Machine Learning Engine
The system features a localized k-Nearest Neighbors logic. It analyzes the current morphology (slope and position) of the Master Axis and compares it to the last 40 historical occurrences.

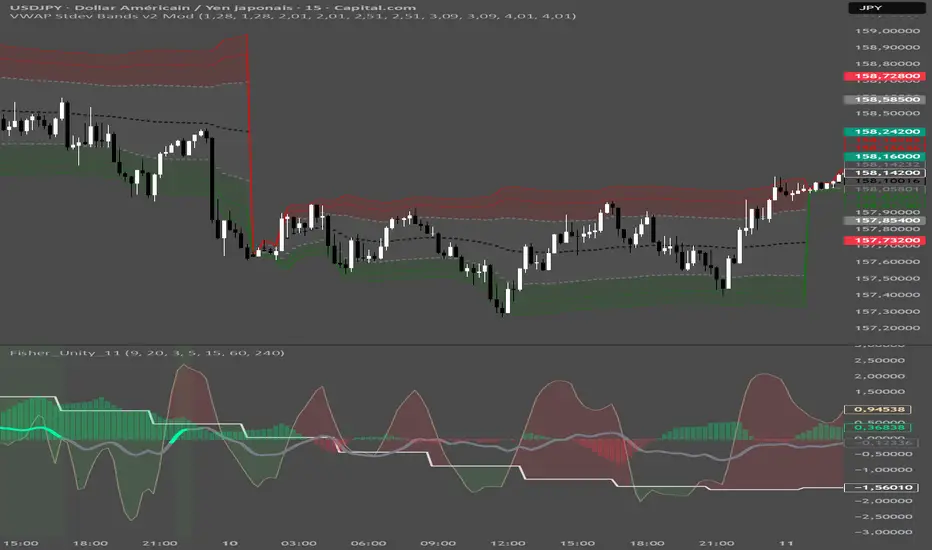

Predictive Score: The histogram at the bottom represents the KNN's confidence. If the current axis shape historically led to a price increase, the KNN displays a positive green score.

■ VISUAL COMPONENTS
The Multi-Layered Ribbon: Displays the gap between the Fast (15m) and Slow (4H) Fisher values. A "Squeeze" in the ribbon often precedes massive volatility breakouts.

Confluent Axis Coloring:

Cyan/Magenta: The Master Axis and the KNN Engine are in agreement. This is your Green Light for trend following.

Gray: The MTF structure and the KNN prediction are conflicting. This is a Neutral Zone where risk is highest.

KNN Confidence Histogram: Real-time probability scoring of the current trend signature.

■ OPERATIONAL STRATEGY
A. Trend Confluence (The Core Setup)
The strongest entries occur when the Master Axis turns Cyan (Bullish) or Magenta (Bearish). This indicates that the 4H trend is being supported by lower timeframe momentum AND that the KNN engine recognizes this pattern as a historically successful one.

B. Statistical Extremes (The Range Setup)
The indicator includes Z-Score Dotted Lines at +2 and -2. These represent statistical anomalies (95% of data stays within these bounds).

When the 15m Fisher hits these extremes while the 4H Axis is flat, it signals a high-probability reversal point for mean-reversion traders.

C. Filtering False Breakouts
One of the most powerful uses of this tool is its Gray Filtering. If the price breaks a level but the Axis remains Gray, it means the KNN algorithm does not see historical validation for the move, warning you of a potential "Fake-out."

■ TECHNICAL SPECS
Standardization: Z-Score Normalization for cross-TF comparability.

Filtering: ALMA-based Zero-Lag smoothing.

Logic: Euclidean Distance-based KNN Classification.

Compatibility: Optimized for Pine Script® v6.

Risk Disclaimer: High-level quantitative indicators provide statistical probabilities, not certainties. Always pair this tool with solid risk management and price action confirmation.
